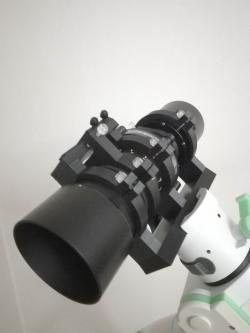

Bracket system for Samyang / Rokinon 135 f:2 telephoto lens

24 Mars 2020

Samyang,Rokinon,135,f:2,bracket,astrophotography,astrokraken,3d-printing

Choose the rings
you need;

Note :
3rd ring is removable.
Feel free to order
several 3rd rings
according to your
different CCD
cameras.

2-rings + upper dovetail for
Samyang 135 f:2 telephoto lens

Bracket system for Samyang 135 f:2 telephoto lens

Price : 45 €

2-rings with lateral M4 nuts + upper dovetail
for Samyang 135 f:2 telephoto lens

Price : 55 €

Worldwide shipping : 25 €

Choose your bottom
dovetail's type :

- Vixen

- Manfrotto 577

- ArcaSwiss

- Losmandy

Note :
Bottom dovetails
are removable.
Feel free to order
several dovetails
according to your
different mount's
clamping systems.

Dovetail for 2-rings bracket

Bracket system for Samyang 135 f:2 telephoto lens

Worldwide shipping : 8 €

Dovetail for 3-rings bracket

Bracket system for Samyang 135 f:2 telephoto lens

Worldwide shipping : 12 €

Add a focuser ring
to your lens

Add a 3rd ring for
a better support
of your CCD
camera

Focuser ring for
Samyang 135 f:2

Bracket system for Samyang 135 f:2 telephoto lens

Price : 20 €

Worldwide shipping : 6 €

3rd ring for CCD camera

Bracket system for Samyang 135 f:2 telephoto lens

Add a bahtinov mask
to your lens

Bahtinov mask type :
Clispable inside the filter diameter

Bahtinov mask type :
Dewshield cap

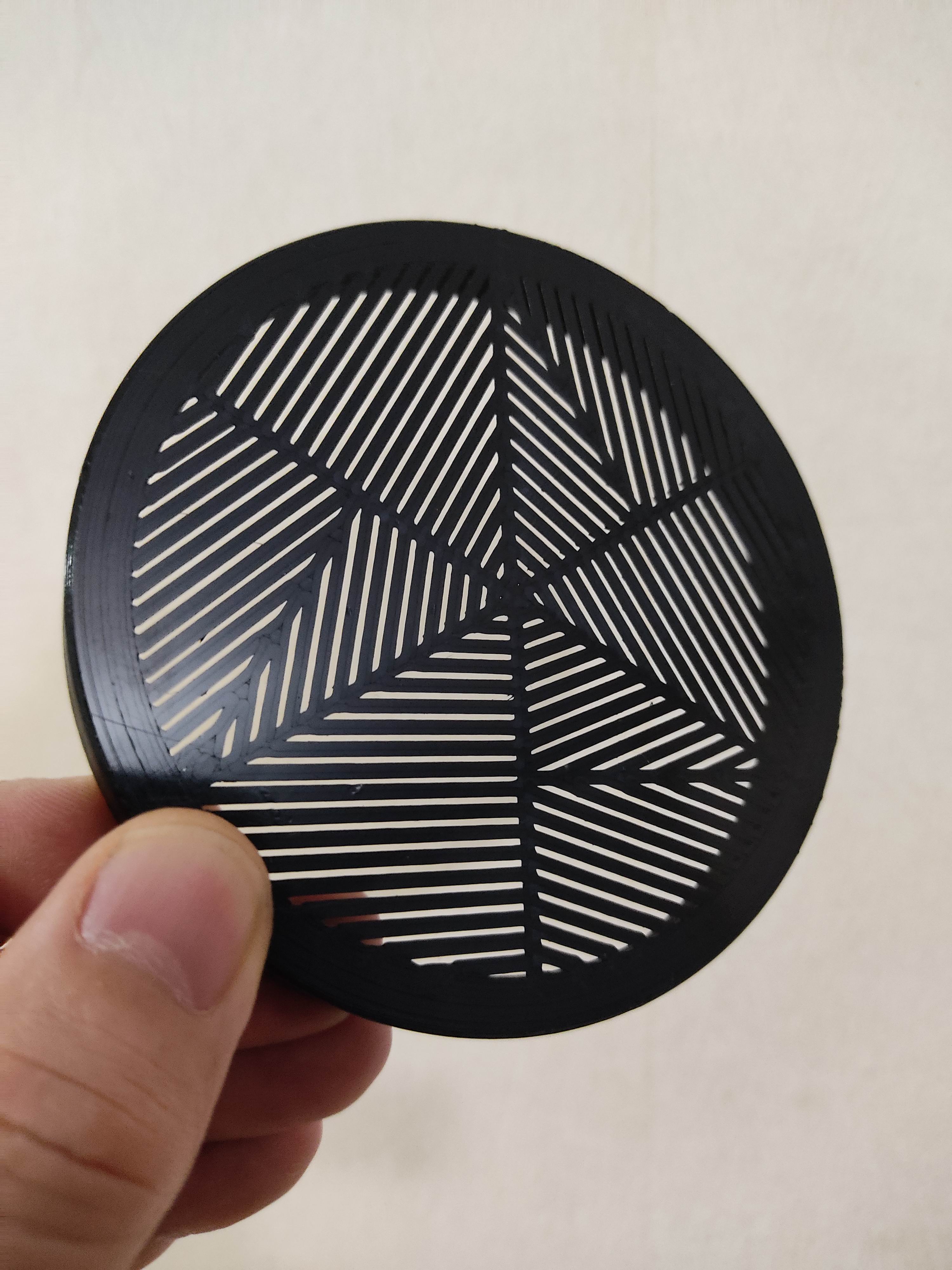

NEW ! Tri-bahtinov mask dewshield cap

tri-bahtinov mask for Samyang / Rokinon 135 f:2 telephoto lens

Materials...

3D-printed parts are made of black PETG.

Rings are attached to the dovetials with M4 metal screws. The bottom dovetail is removable :

- you can swap betwen different dovetail types,

- on the basis of a 2-rings bracket, you can add whenever you want a 3rd ring and the relevant dovetail.

Clamping screw are made of polycarbonate and nylon.

The kit doesn't include the fast-release clamp, the guidescope, the red-dot finder, the mount, the CCD and DSLR cameras, the filters wheel.

The bracket with hinged rings...

Available with lateral M4 nuts :

The Manfrotto 577-like dovetail is compatible with the following type of fast-release clamping system (not included in the kit) :

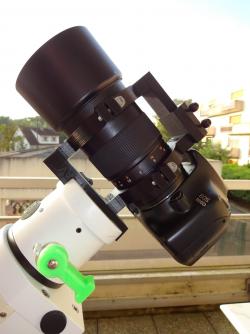

Samyang 135 f:2 bracket for astrophotography

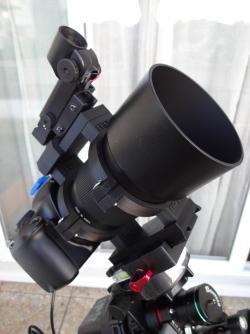

Bracket with Vixen dovetail :

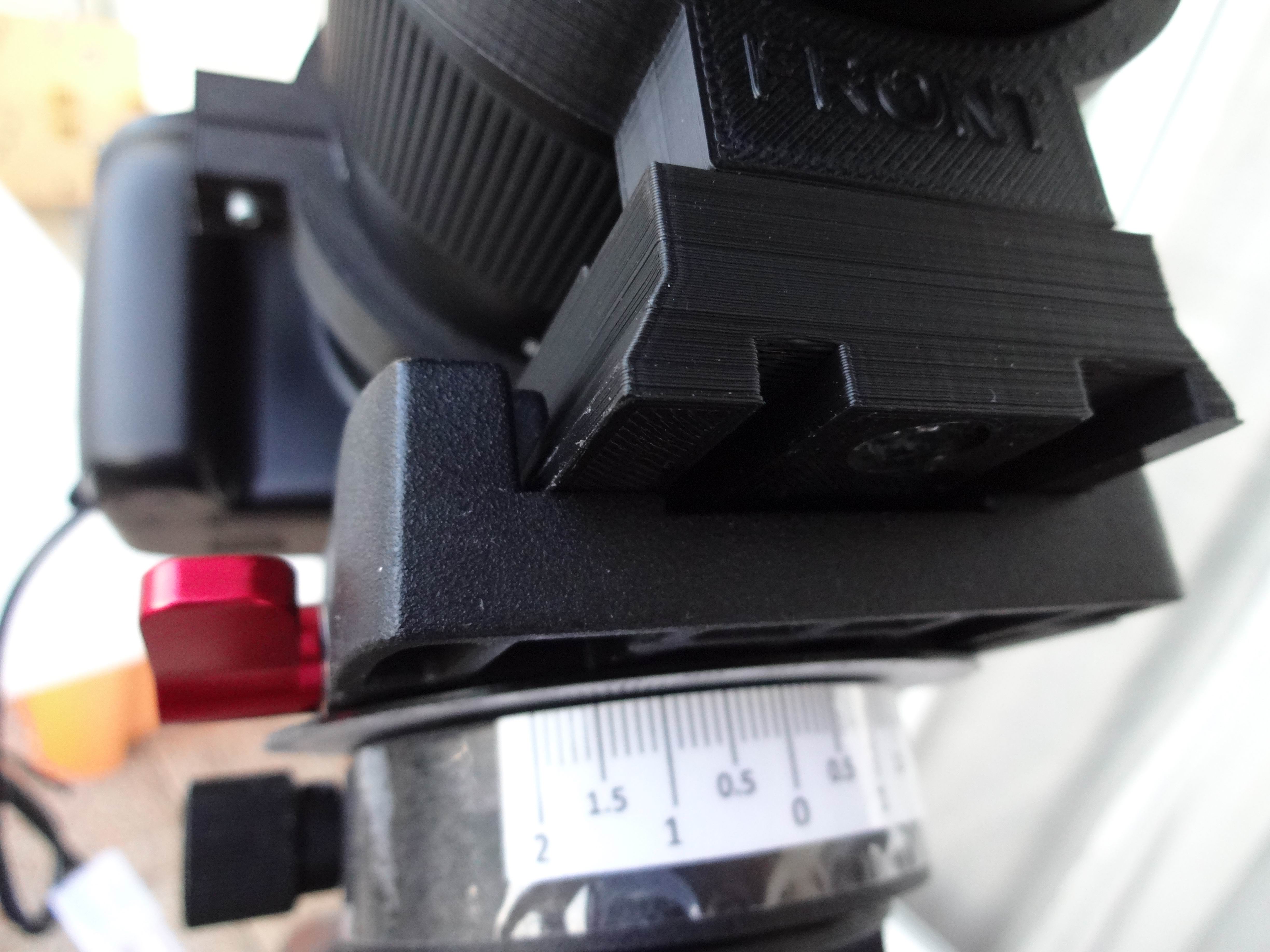

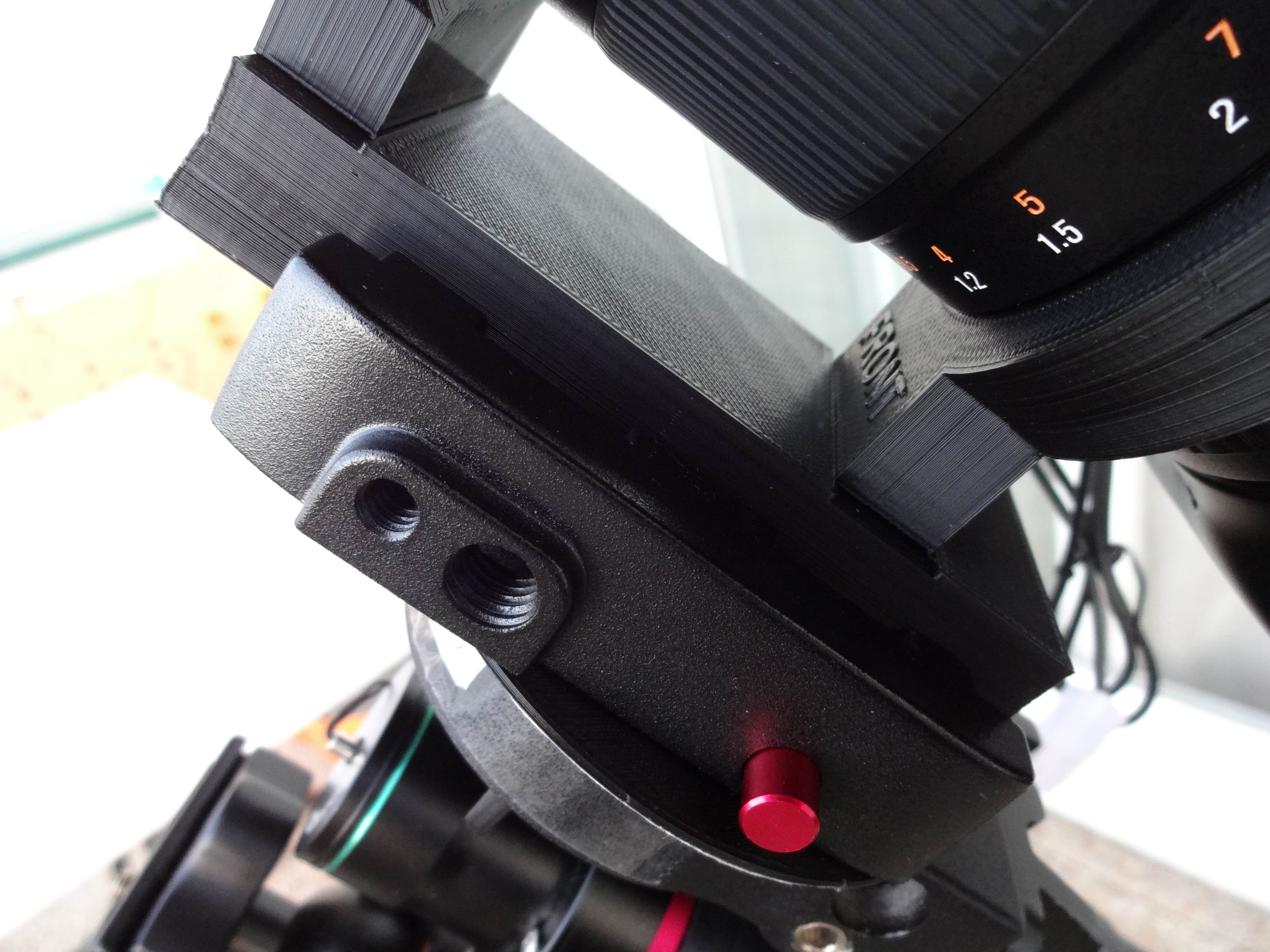

Bracket with fast-release Manfrotto 577-like dovetail :

The micro-focuser hinged ring

The 3-rings bracket ...

The Bahtinov masks ...

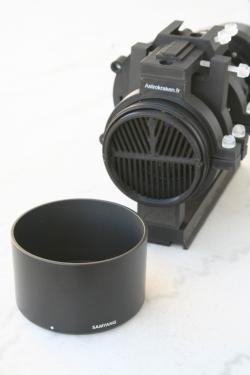

- Clipsable inside the filter diameter :

bahtinov mask,samyang 135,astrophotography

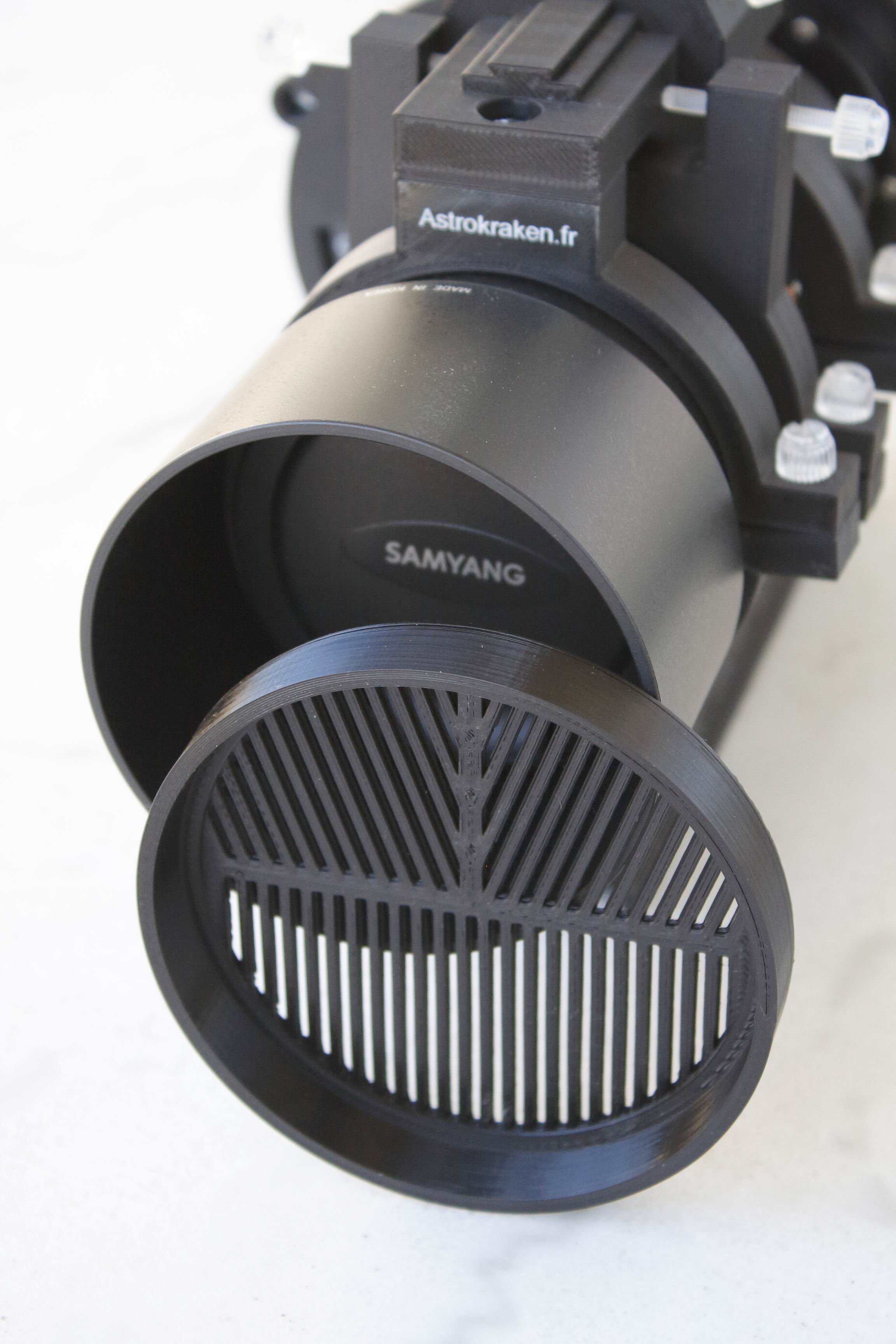

- Dewshield cap :

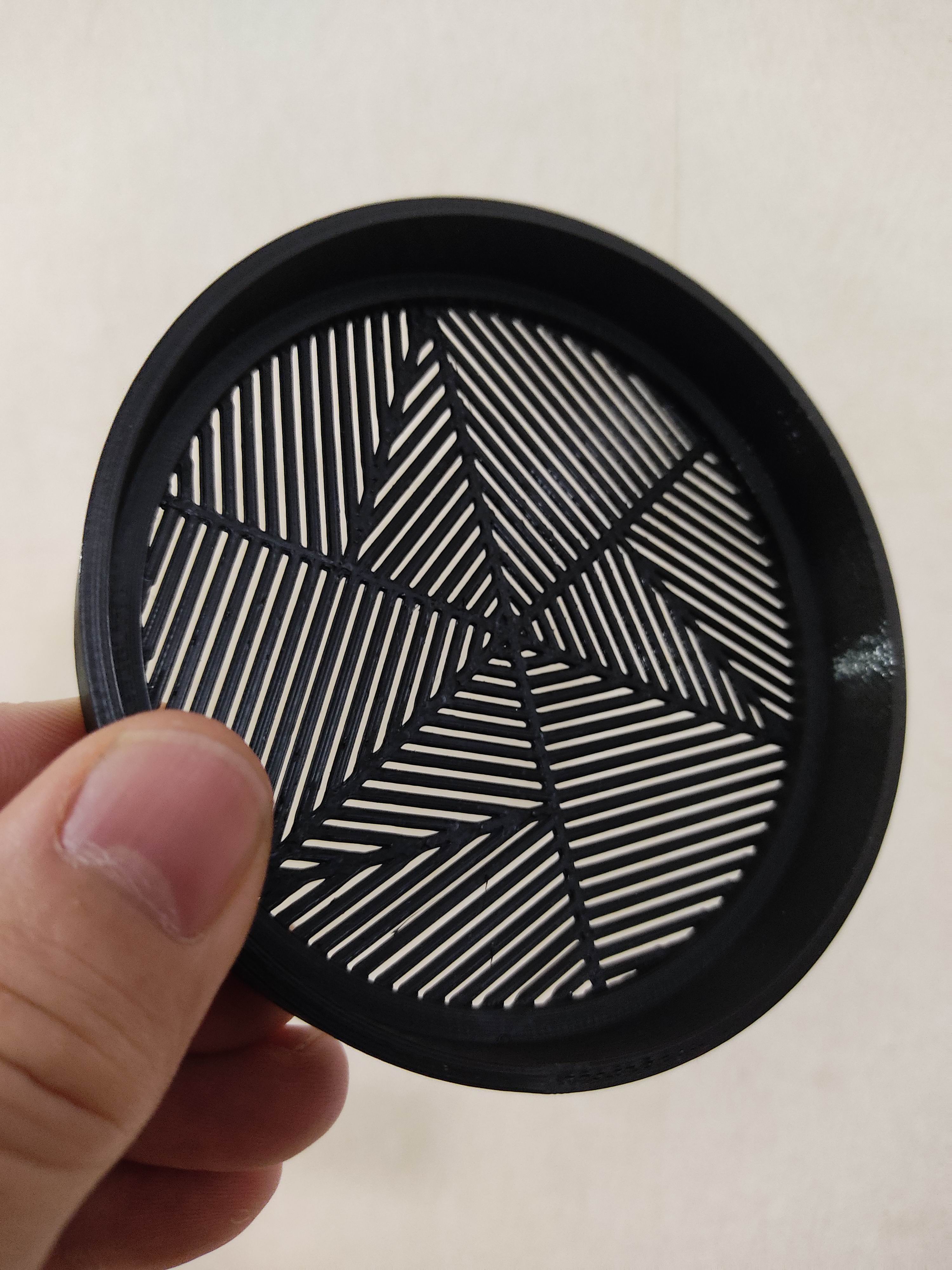

- Tr-bahtinov mask dewshield cap :
