Material : 3D printed parts are made of PLA.
Note : Right angle viewfinder, Polemaster, illuminator, are not included.

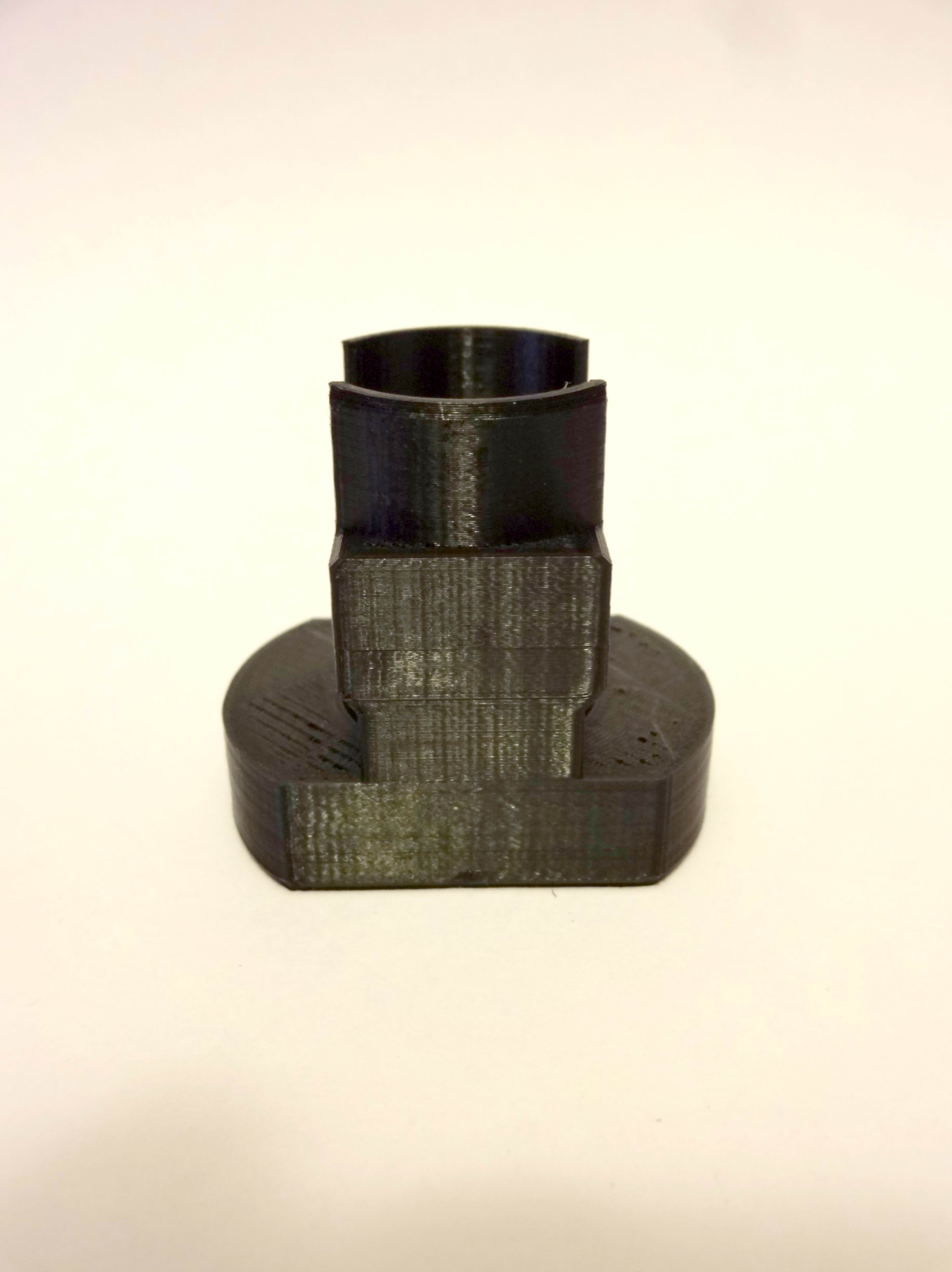

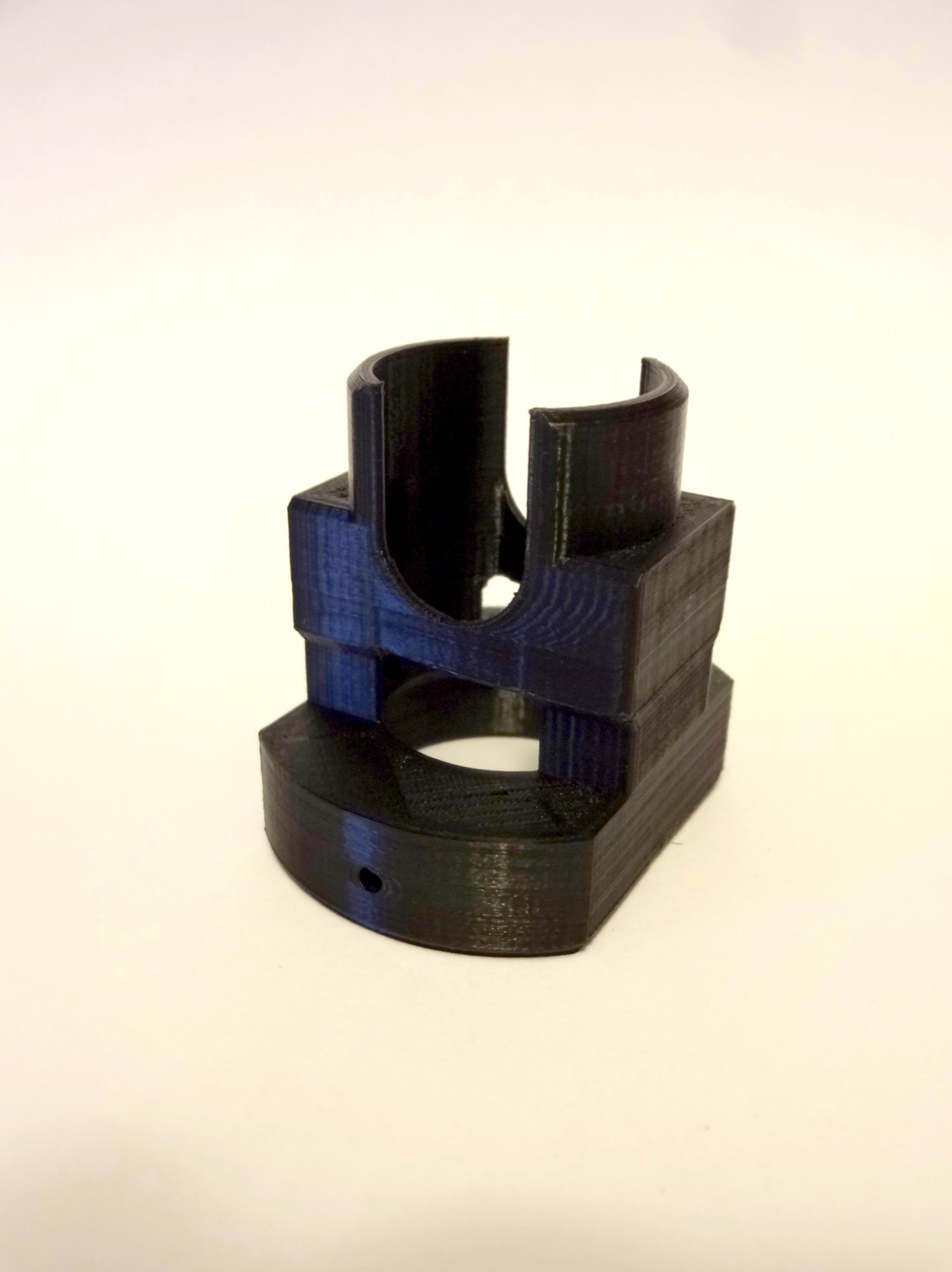

The polar illuminator adapter...
This adapter compensates for a lack in the Star-Adventurer and Star-Adventurer Mini mounts.
Indeed, the illuminator provided with the mount is usable when no instrument is attached thereto.
The alignment is likely to be significantly affected when mounting the "L"-bracket + counter-weight + camera.
Unfortunately, once the "L" bracket mounted, it is not possible to put the polar illuminator in the axis of the polar scope.

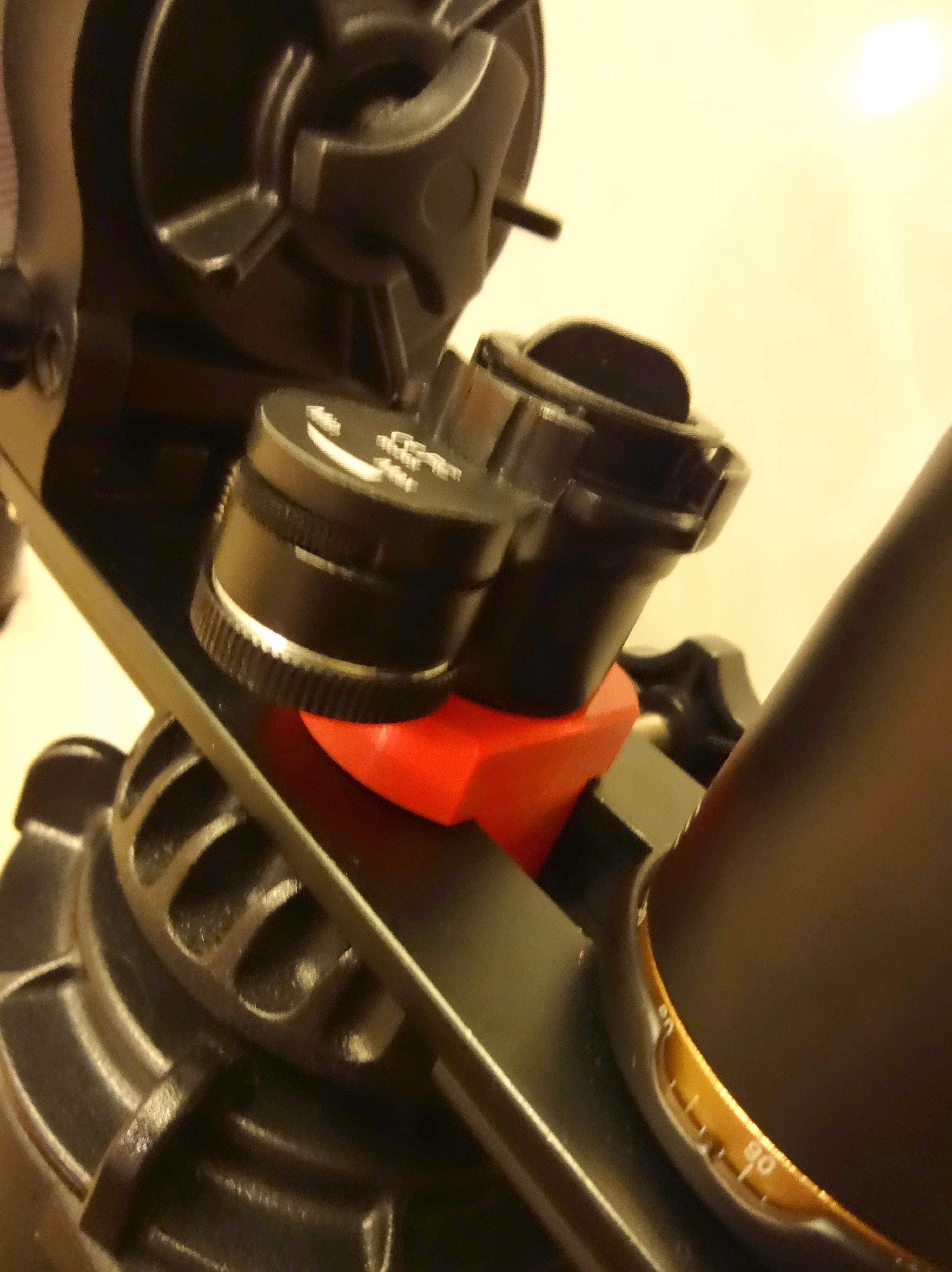

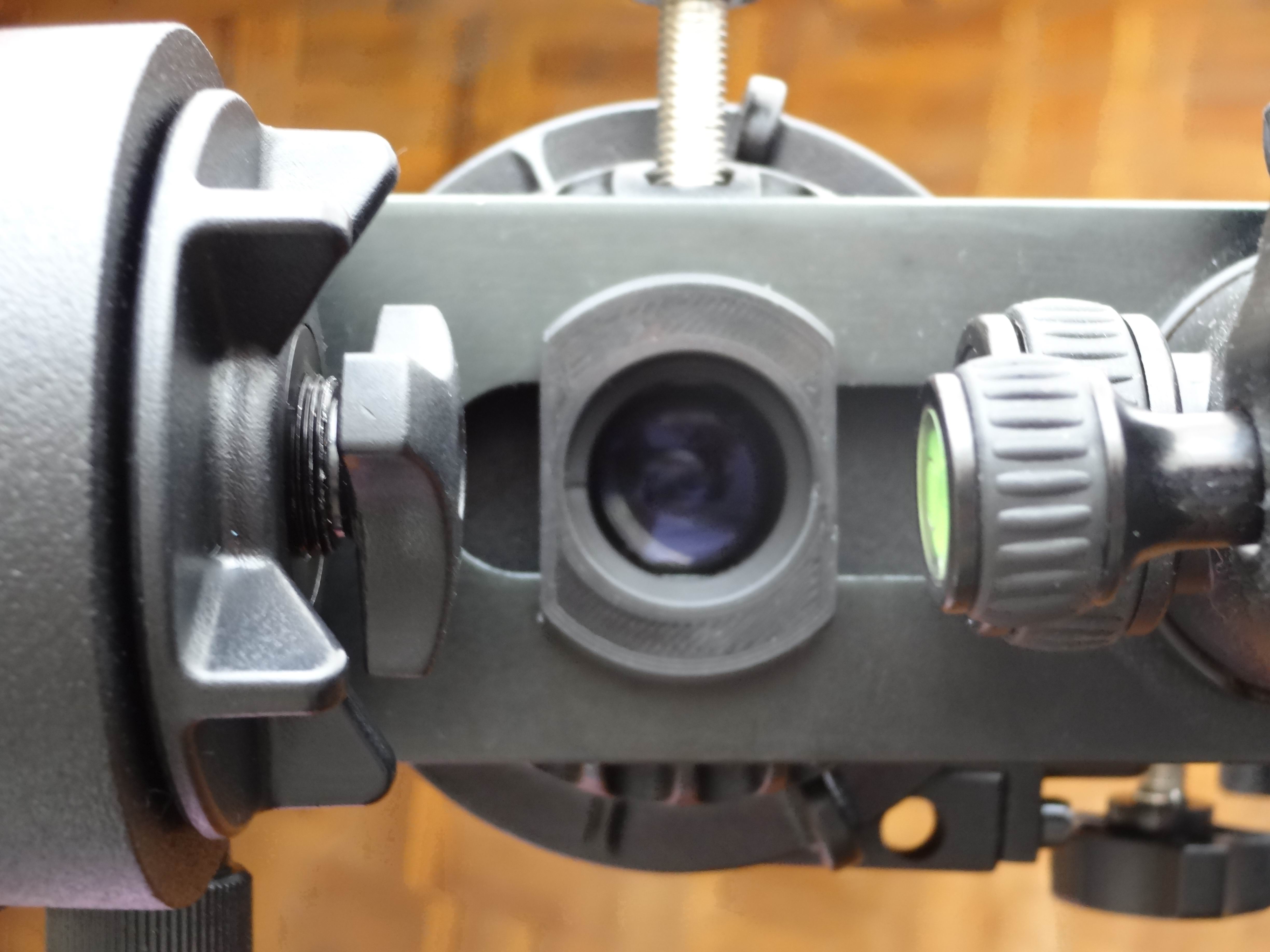

This is why I designed and 3Dprinted this adapter that fits into the slot of the "L"-bracket and that is positioned in the center of the viewfinder.
The illuminator is then placed in the adapter. The cap can also be placed to close the adapter.
Glow-in-dark adapter :
Material : PLA
Colour : black, glow-in-dark (green, white at daylight), red.
Specify the type of mount and the color you want (black or green-glow) while ordering.

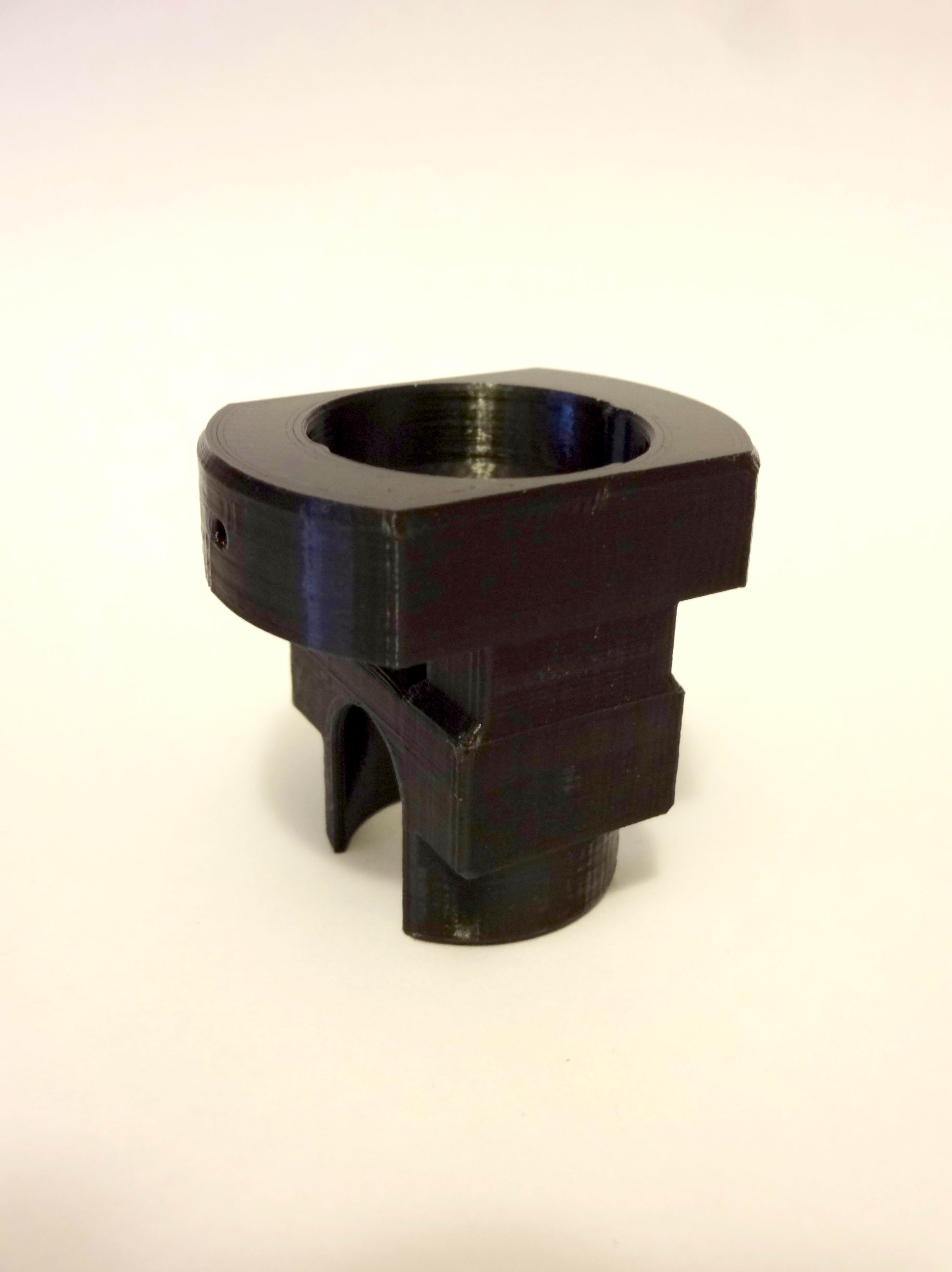

Adapter for Star-Adventurer mini :
Dual adapter for illuminator or nude polemaster ...
Materials :
- 3D-printed PLA (body)
- 2 polycarbonate screw (calmps)
- 3 steel blots (assembly)
What do you buy ?
A kit including two parts and 3 screws.

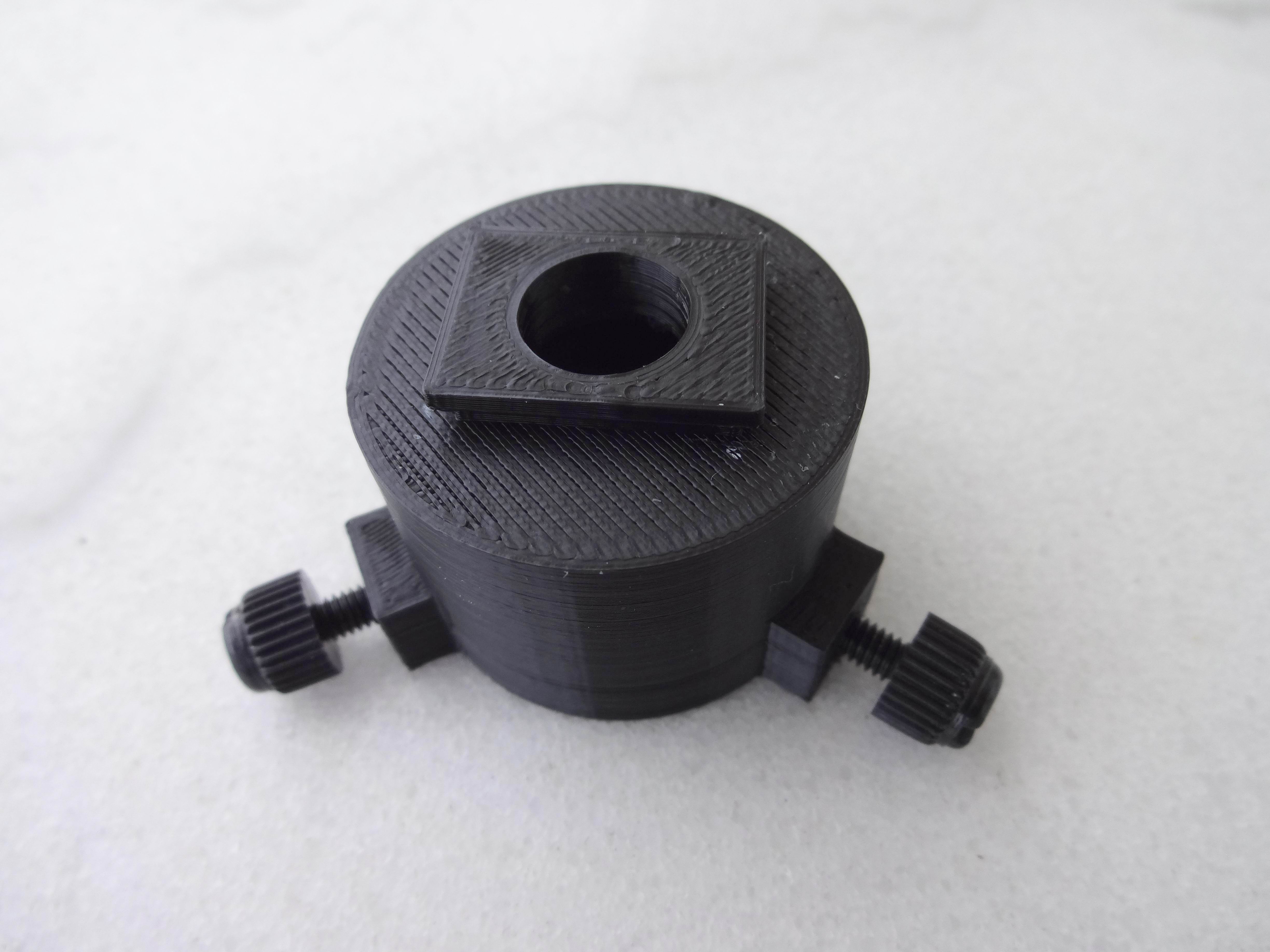

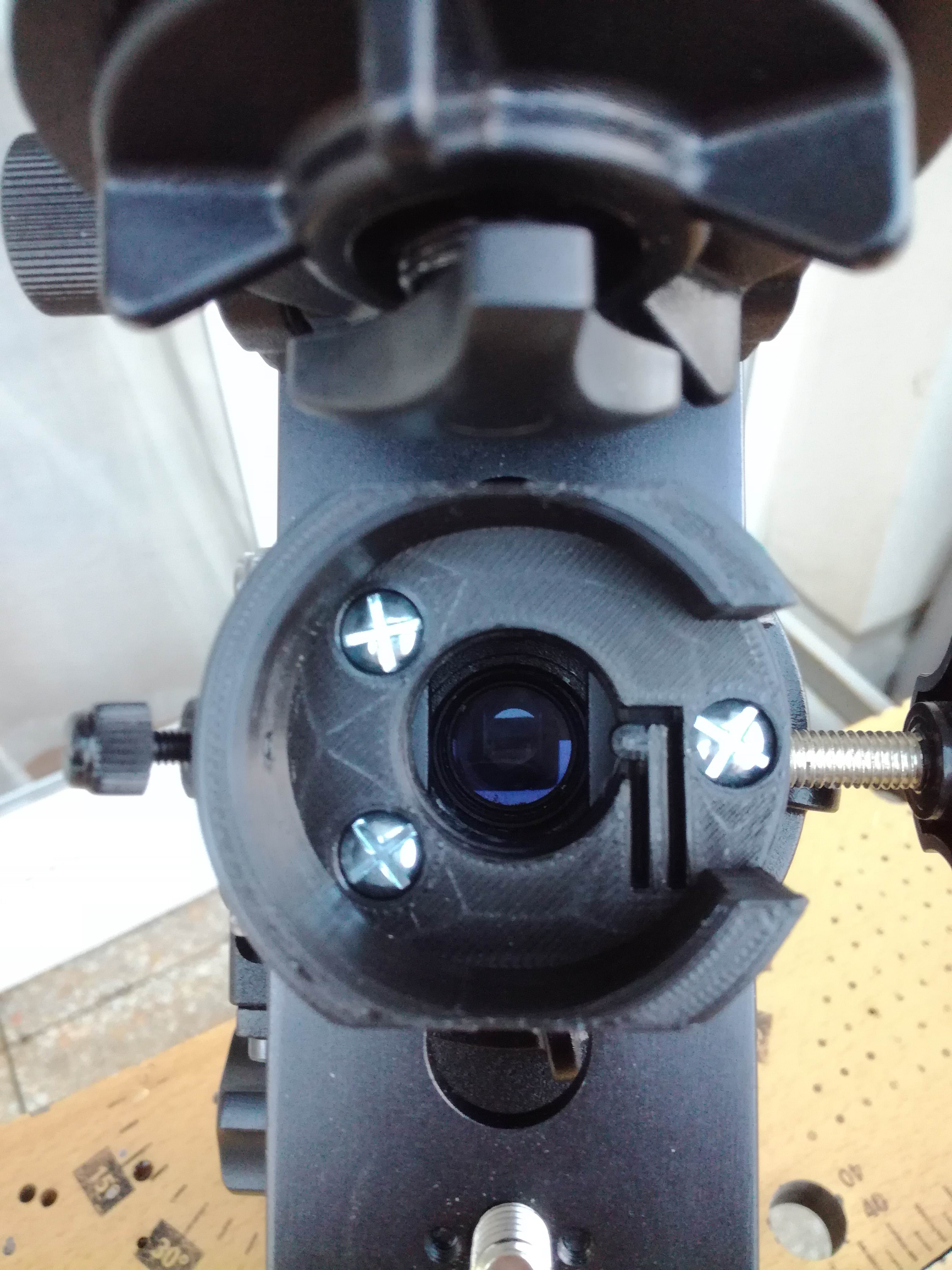

View of the dual-adapter after assembly :
One can see the 2 screws that tighten the 2 clamps.

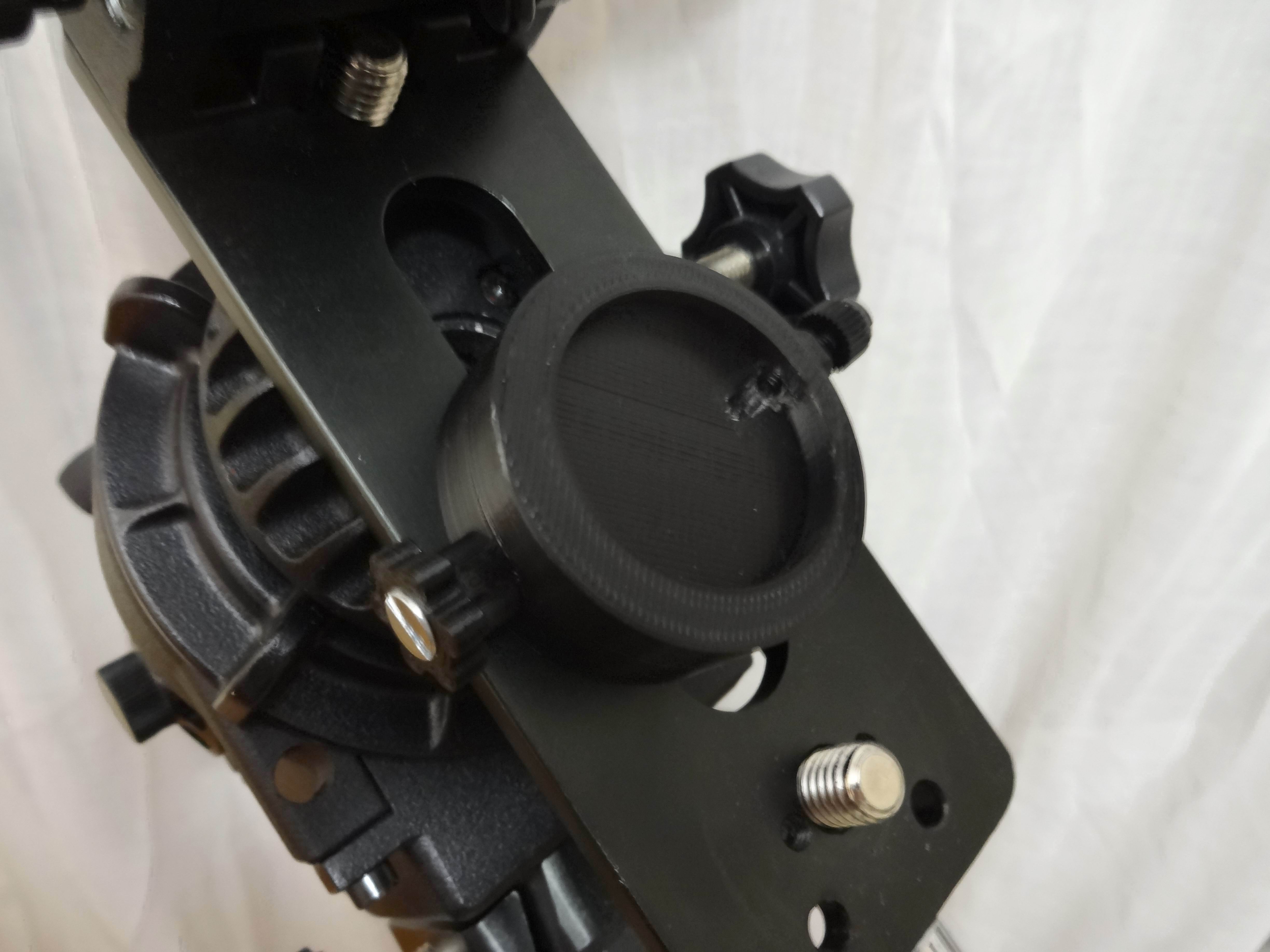

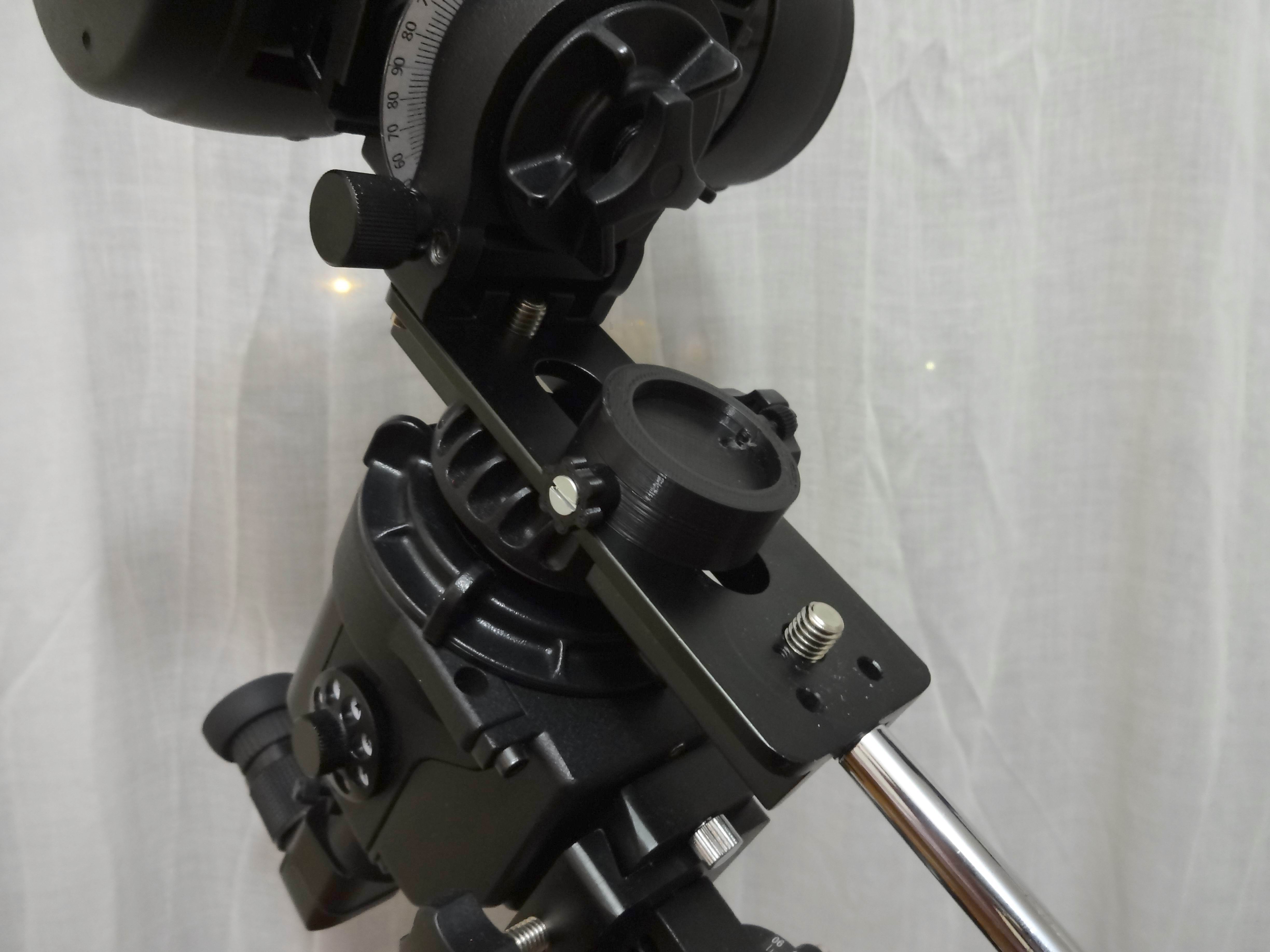

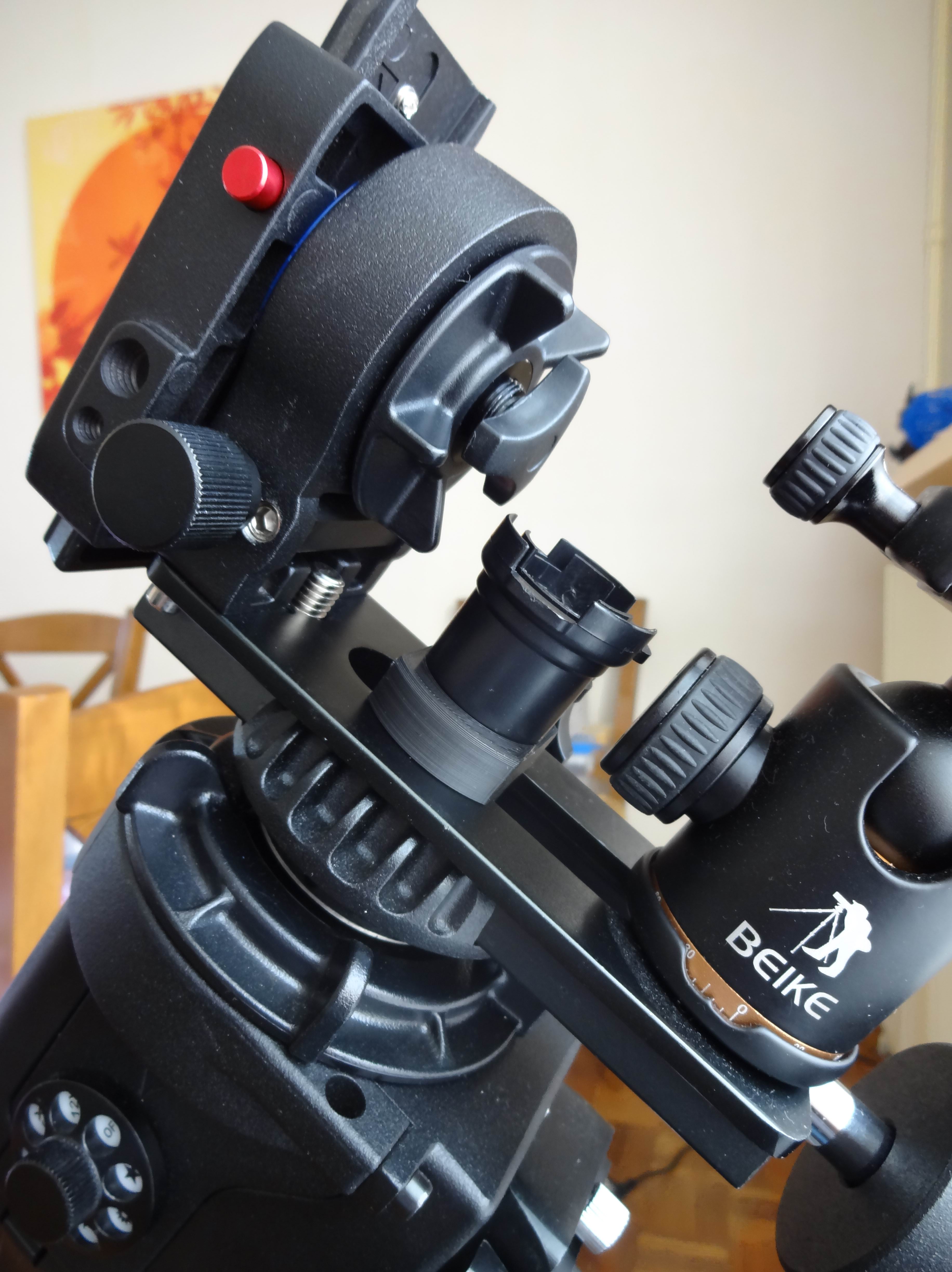

View of the adapter in place in the groove of the L-bracket of a Star-Adventurer :

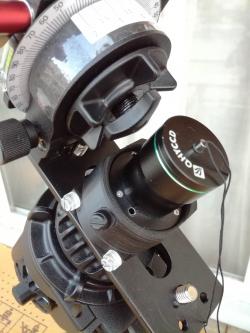

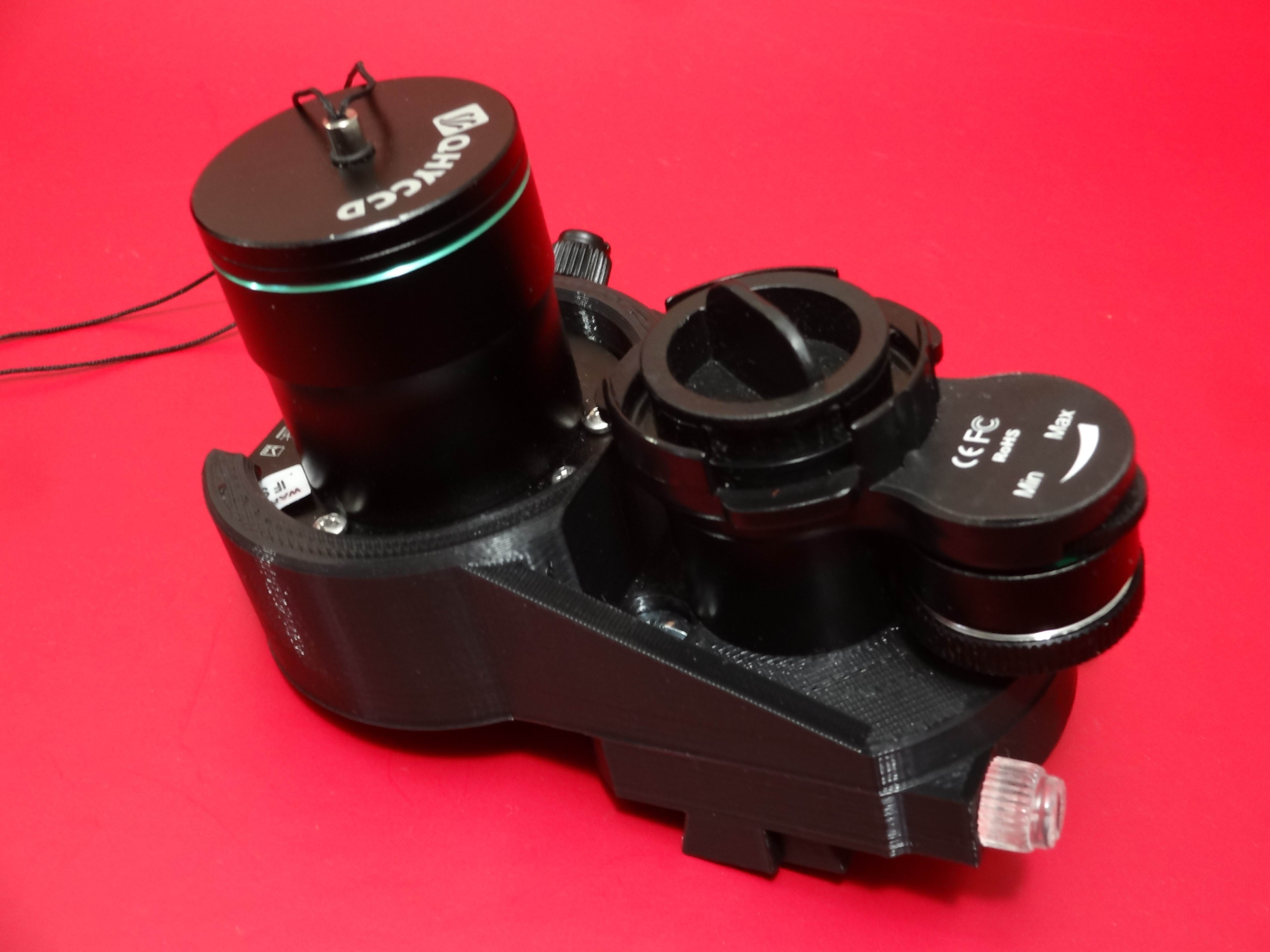

Tandem adapter for illuminator and Polemaster...

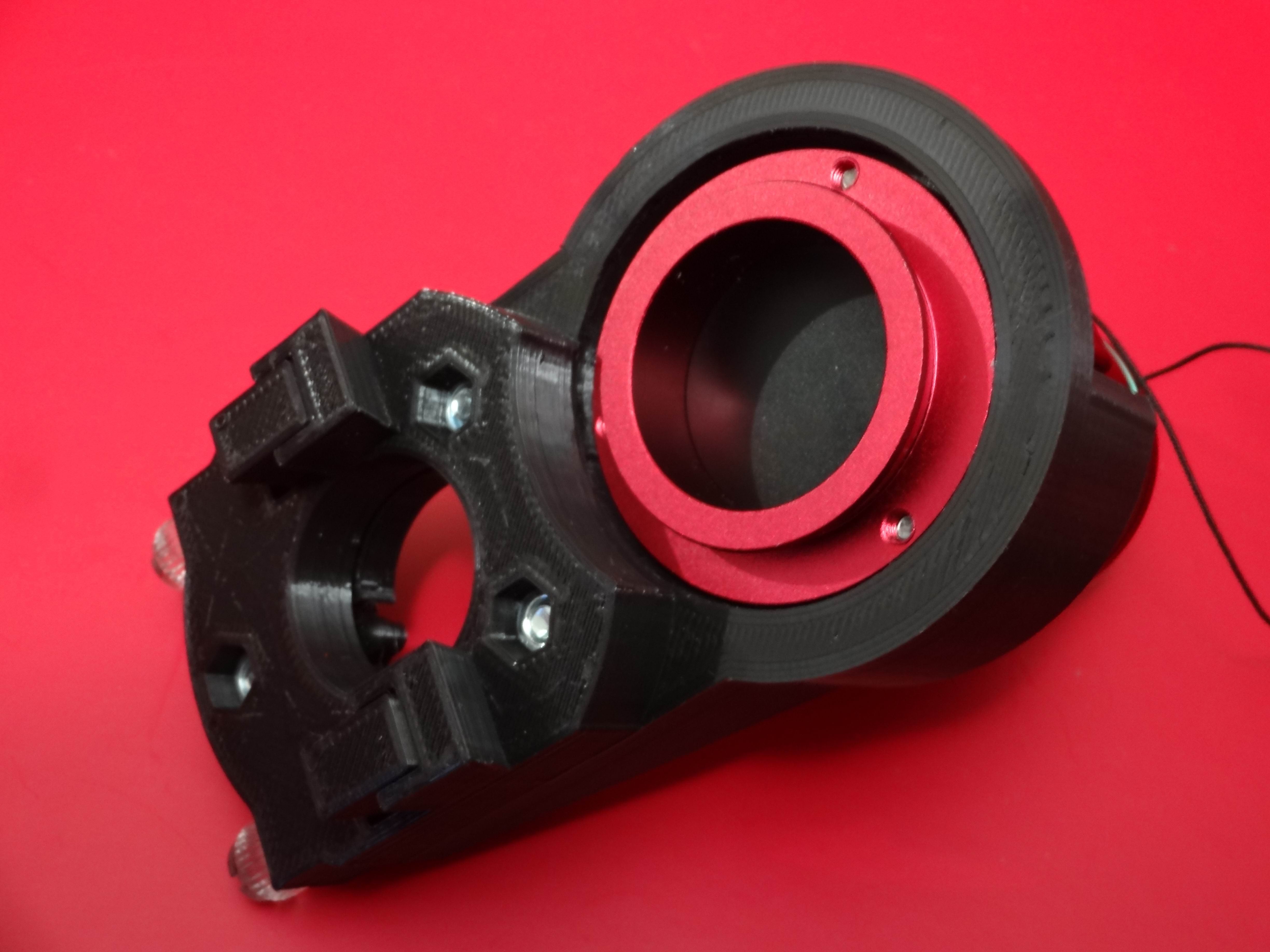

The large hole in the adapter allows to mount a Polemaster + a 45 mm diameter adapter ring (e.g. QHYCCD dovetail ring, in red on the following pictures).
Material :
- adapter's body and clamp-base : 3D-printed black PLA plastic,
- assembly screws : steel,
- clamp screws : polycarbonate,
- Polemaster's blocking screw : black nylon.
Remark : Polemaster, QHYCCD dovetail ring, illuminator, mound and L-bracket, are not included.

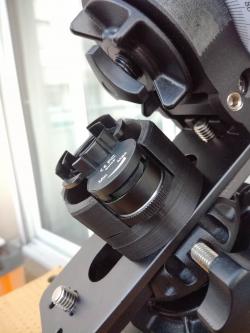

Polemaster+QHYCCD dovetail adapter...
This adapter includes a fast-release grip specially designed to fit the L-bracket of your Star-Adventurer.
ATTENTION : Select your adapter accordig to your QHYCCD dovetail diameter :
- 36 mm;
- 39 mmdiameter.
Materials :
- body : 3D printed PLA
- 1 nylon screw (Polemaster blocking)
- 1 steel scew (grip blocking)
Polemaster and HEQ dovetail not included.
The adapter is available in glow-in-dark color (white at daylight).
Declination setting circle...
On one side : graduations sticked on the rotating-setting ring.
The disc is inserted on the Kodak screw of the declination ring with downward coordinates.
This new version is removable (the disc isn't sticked on the axis).

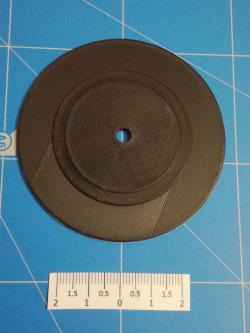

The overall thickness of the disc is around 2 mm.
When the disc is in place, you can rotate the coordinate ring. The ring is slightly tightened and stays in position.
Don't forget to stick the marker on the body of the declination axis, in front of the declination setting circle.
You can fix your telescope or telephoto lens to the declination axis, as you usually do.
The precision setting scale allows an accuracy of 0.5° (beyond if you have good eyes...).
The kit includes :
- 1 declination settng circle, ready to insert on the DEC axis,
- 1 precision scale, ready to stick on the DEC axis's body.
The L-bracket isn't included

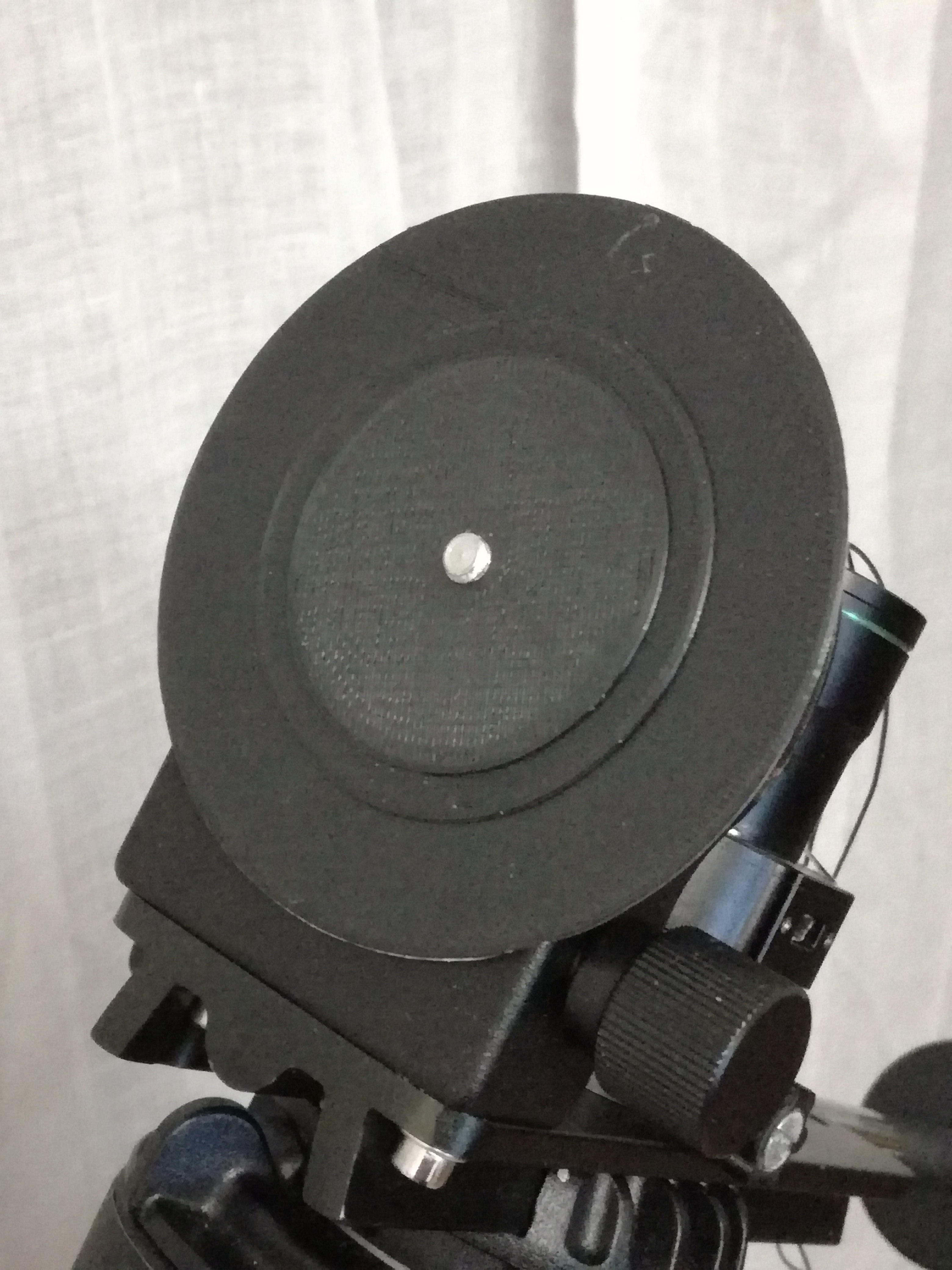

The declination setting circle rotates as you rotate the declination axis.
Once a refecence object is pointed, you can rotate the declination ring to set its declination coordinate.
The polarscope adapter for right angle viewfinder...
L'adaptateur est constitué d'une pièce imprimée 3d en PLA et de 3 vis en nylon.

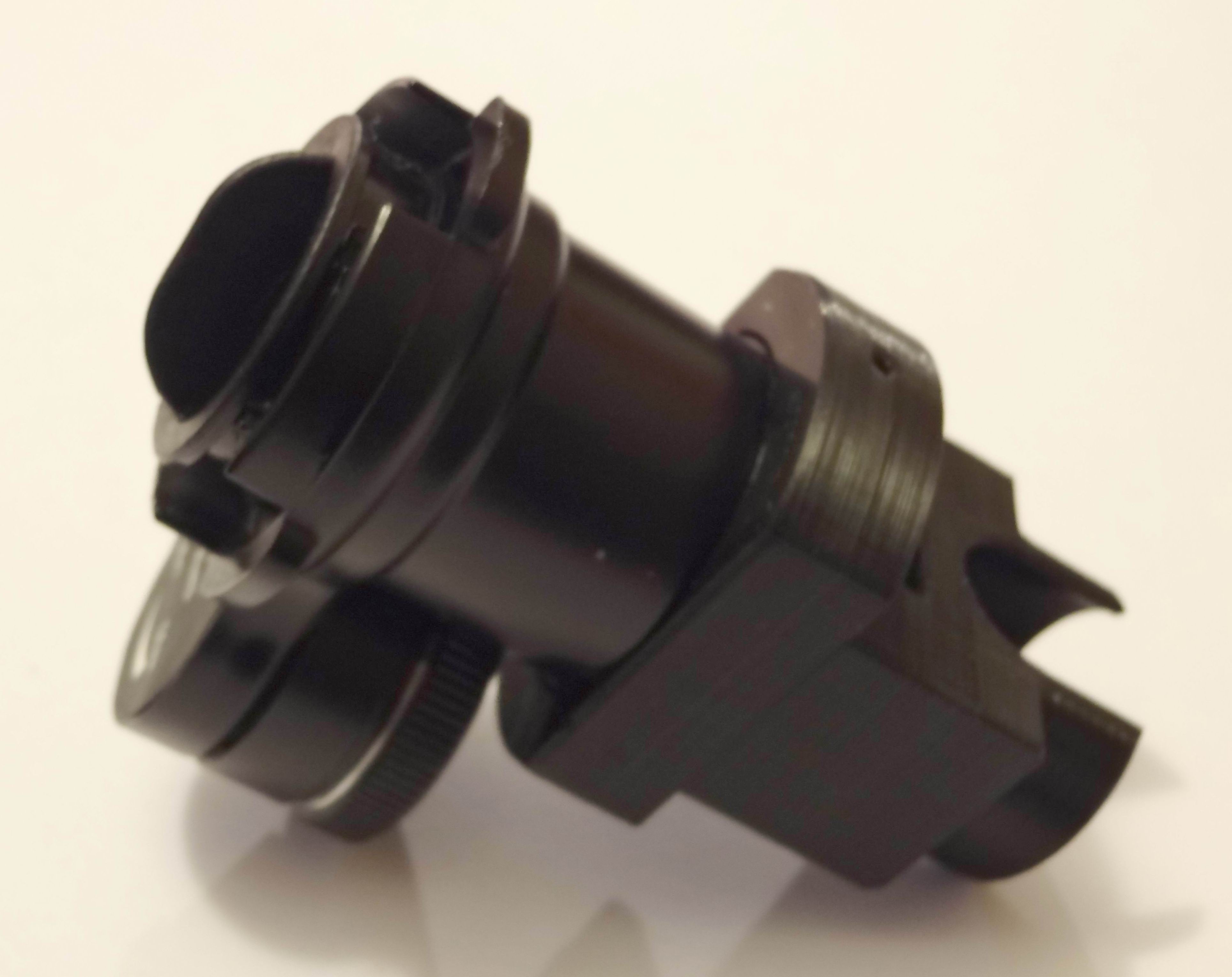

The adapter is constitued of one 3D-printed piece (material : PLA) and 3 nylon screws.
Ci-après, sur monture Skywatcher Star-Adventure avec viseur d'angle Seagull :

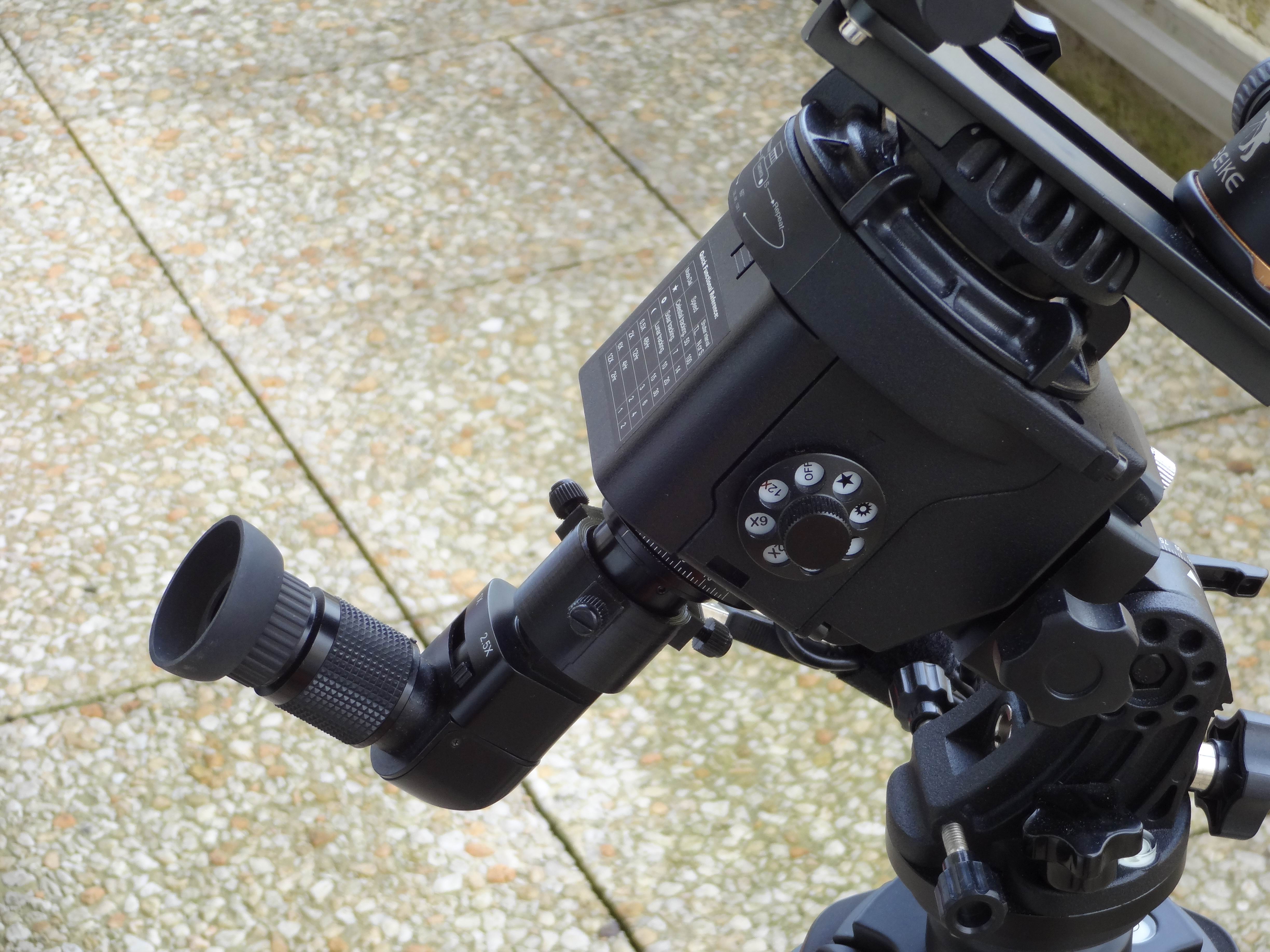

Hereafter, on Skywatcher Star-Adventurer mount, with Seagull angle-finder :
Ci-après, sur montures iOptron Skytracker, avec viseur d'angle Seagull :
Hereafter, on iOptron Skytracker mounts, with a Seagull angle-finder :
Ci-après, sur monture Skywatcher Star-Adventurer, avec viseur d'angle Canon Finder-C+Ed-C :
Hereafter, on kywatcher Star-Adventurer mount, with Canon Finder-C+Ed-C angle-finder :
Il s'adapter parfaitement à l'adaptateur Ed-C fourni avec le viseur d'angle Canon Finder- (non inclus).
It fits perfectly the Ed-C part provided with the Canon angle finder C (not included).

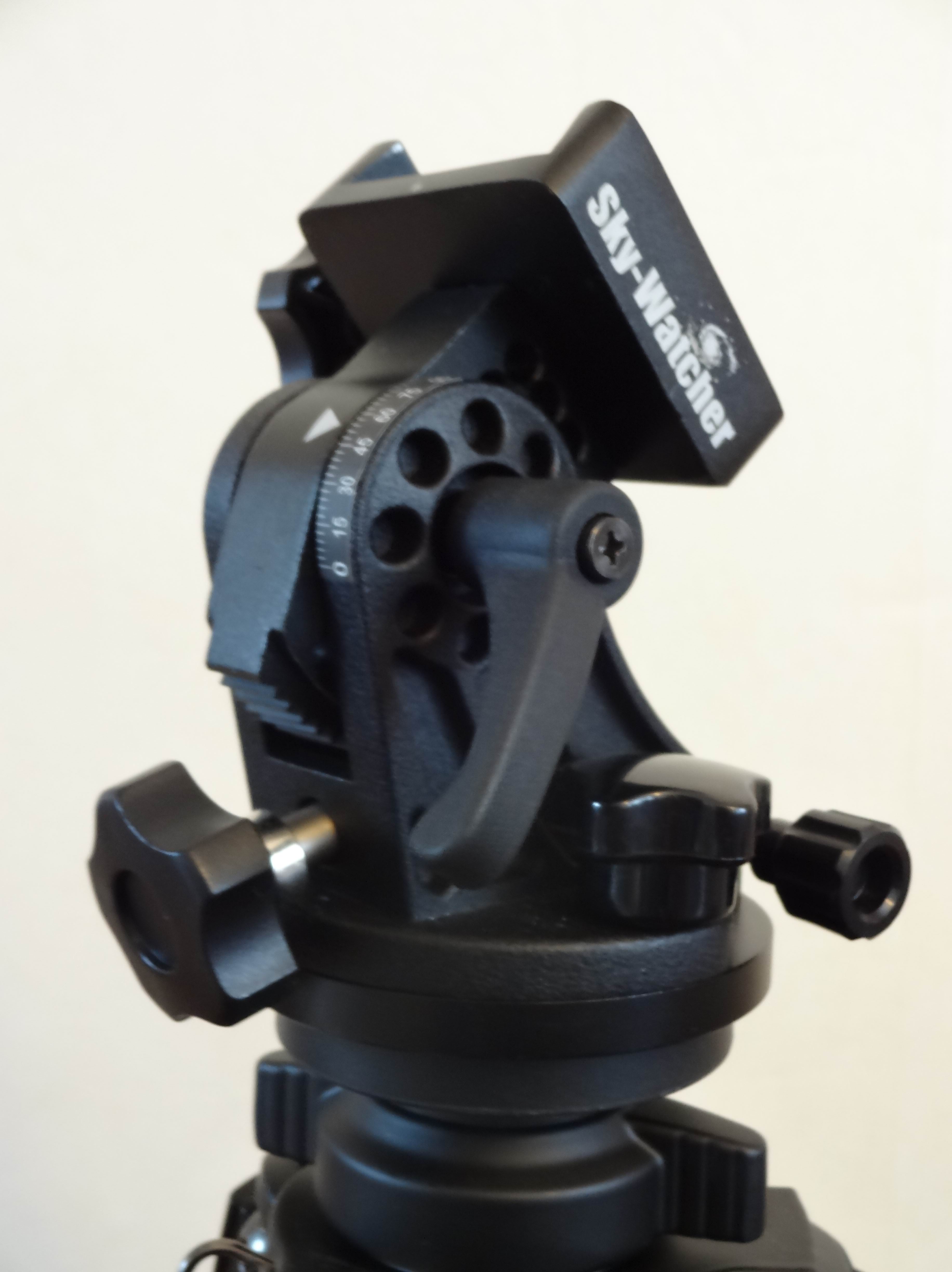

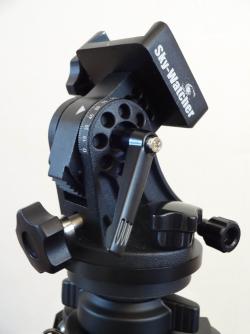

The metal latitude blocking lever...
Si vous possédez une monture Star-Adventurer,
vous êtes certainement confrontés à des problèmes de serrage
et de blocage en latitude à cause de la faiblesse du
levier en plastique d'origine.
Voici la solution : un levier de remplacement en métal.
If you own a Star-Adventurer mount, you may have encountered
tightening and latitude locking problems, due to the weakness of
the original plastic lever.
Here is the solution : a replacing metal lever.
 |
 |
A gauche : le levier de remplacement en métal. A droite : le levier d'origine en plastique. Le levier en métal est plus long et plus rigide. Left : replacing metal lever. Right : original plastic lever. The metal lever is longer and more rigid. |
 |
 |
Ici, le levier de remplacement en métal : - l'écrou M6 est en acier, - le levier est en aluminium. Here, the metal replacing lever : - the M6 nut is made of steel, - the lever is made of aluminium. |
  |
En haut : le levier de remplacement démonté. En bas : comparaison des deux leviers démontés. Les dents de l'écrou du levier d'origine offrent peu de prise L'écrou en métal du levier de remplacement en métal est 4 rondelles sont fournies avec le levier en métal. Il peut être nécessaire de placer une ou plusieurs rondelles entre le levier et la monture pour que le serrage puisse être efficace. Cela dépend de la version de votre monture. Left : dismounted replacing lever. Right : comparison between original and replacing levers. The teeth of the original lever's nut offer few grip and already show wear signs from the first use. The metal nut of the replacing lever is much more resistant. The teeth of the metal lever are more resistant as well. 4 washers are supplied with the metal lever. It may be necessary to place one or more washers between the lever and the mount for the tightening to be effective, depending on the version of your mount. |
|
